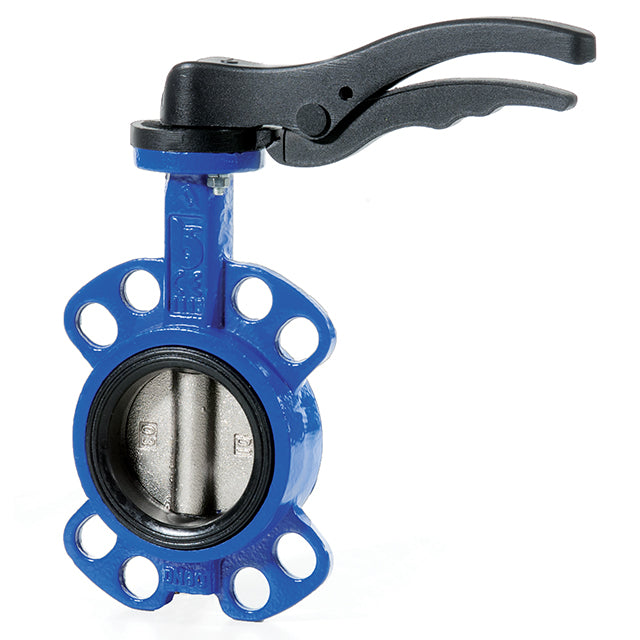

1 1/2" Multi-flange Wafer Pattern Butterfly Valve Stainless Steel Disc EPDM Liner. VS9911

The stainless steel disc and EPDM liner of this 1 1/2" Multi-flange Wafer Pattern Butterfly Valve make it a reliable and robust valve for any application. The multi-flange wafer pattern ensures a secure fit, providing high performance and durability.

• ISO 5211 for Direct Mount
• Epoxy Coated Ductile Iron Body
• 316 Stainless Steel Disc
• EPDM Liner
• Locking Lever Operation 1" to 12"
• Gearbox Operation 14" to 24"
• Complies with 97/23/CE (PED) Directive CE 1115.

Rated PN16 1” to 12”, PN10 14” to 24”, Temperature -10°C to 120°C.

Note: Gearbox operation available for all sizes, please enquire. 1” to 16” to fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges. 18” to 24” to fit PN16 Flanges.

WRAS Approved valves stocked from 2” to 16”, Other sizes stocked are not WRAS Approved. If you require other sizes with WRAS Approval, please enquire.
