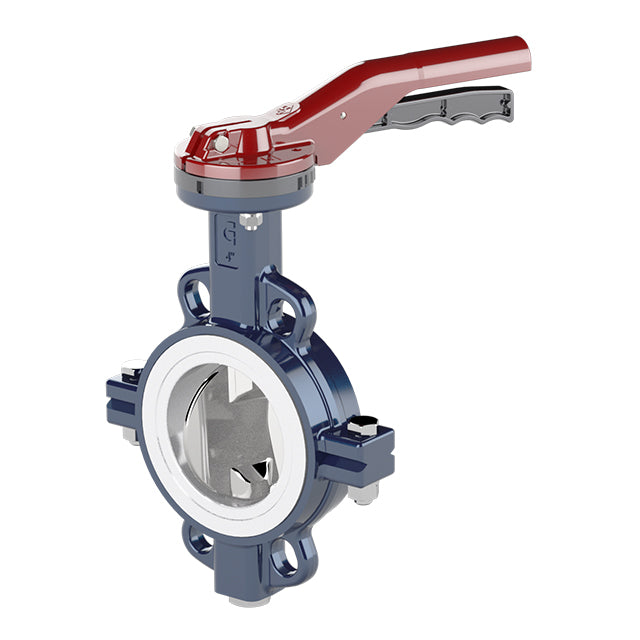

10" Wafer Pattern Ductile Iron Butterfly Valve PTFE Liner Stainless Steel Disc VS9524

This 10" butterfly valve features a PTFE liner and durable stainless steel disc, providing superior protection from corrosion and wear. It is designed in a wafer pattern with ductile iron construction, allowing for reliable and heavy-duty performance.

• Wafer to suit PN10/16 & ANSI 150 Flanges
• 2 Piece Ductile Iron Body
• AISI 316 Stainless Steel Disc
• PTFE Liner
• Lever Operated 2" to 8"
• Gearbox Operated 10" & 12"
• Suitable for Vacuum Use

Rated PN10, Temperature -10°C to 190°C.

Available up to 20”. Also available Lugged PN10/16/ANSI 150 and/or PTFE Coated Disc. Wafer Pattern also available with Stainless Steel Body.
