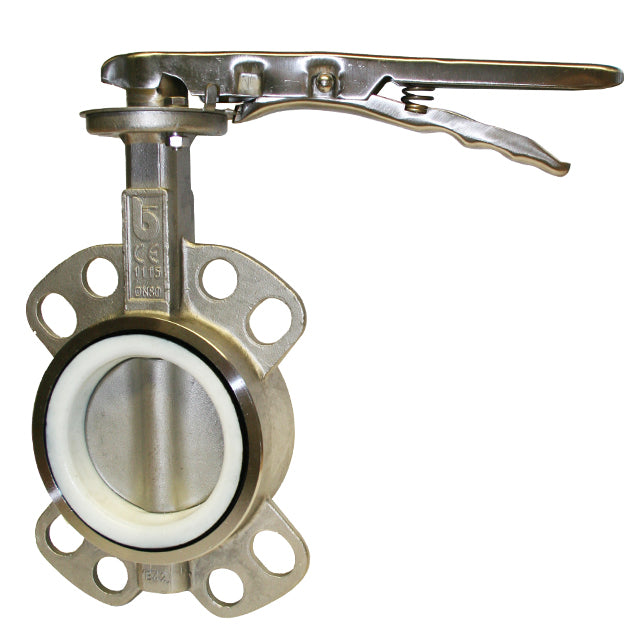

2 1/2" Brandoni Stainless Steel Wafer Butterfly Valve Stainless Steel Disc PTFE Liner. VS9958

This 2 1/2" Brandoni Stainless Steel Wafer Butterfly Valve features an impressively strong stainless steel disc and PTFE liner for reliable sealing and durability.

• ISO 5211 for Direct Mount
• Stainless Steel Body & Disc
• PTFE Liner
• Stainless Steel Lever Operated up to 5"
• 8" Gearbox Operated
• Complies with 97/23/CE (PED) Directive CE 1115.

Flange Suitability:
2″ PN6/10/16/ANSI 150/Table D & Table E
2½” PN6/10/16 & ANSI 150
3″ to 8″ PN6/10/16/ANSI 150/Table D & Table E

Rated PN16, Temperature -10°C to 120°C.

Note: Gearbox Operation Available, Please Enquire.

Please confirm operation for 6″ with sales – due to the forces required to close the valve we strongly recommend gearbox usage.

Face to Face: 46mm
