3" Brandoni Stainless Steel Wafer Butterfly Valve Stainless Steel Disc PTFE Liner. VS9958
3" Brandoni Stainless Steel Wafer Butterfly Valve Stainless Steel Disc PTFE Liner. VS9958
Regular price
£429.84 Inc Vat
Regular price
Sale price
£429.84 Inc Vat
Unit price
per
Available To Order!
Couldn't load pickup availability

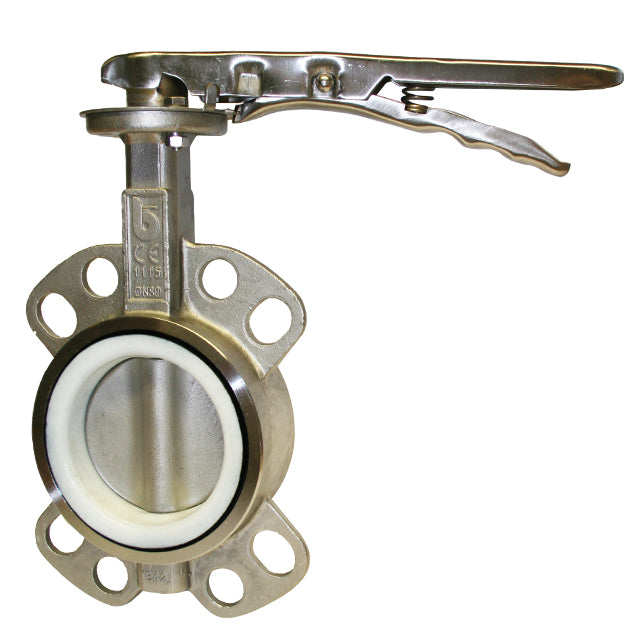

This 3" Brandoni Stainless Steel Wafer Butterfly Valve features an impressively strong stainless steel disc and PTFE liner for reliable sealing and durability.
- ISO 5211 for Direct Mount
- Stainless Steel Body & Disc
- PTFE Liner
- Stainless Steel Lever Operated up to 5"
- 8" Gearbox Operated
- Complies with 97/23/CE (PED) Directive CE 1115.
Flange Suitability:
2″ PN6/10/16/ANSI 150/Table D & Table E
2½” PN6/10/16 & ANSI 150
3″ to 8″ PN6/10/16/ANSI 150/Table D & Table E
Rated PN16, Temperature -10°C to 120°C.
Note: Gearbox Operation Available, Please Enquire.
Please confirm operation for 6″ with sales – due to the forces required to close the valve we strongly recommend gearbox usage.
Face to Face: 46mm
