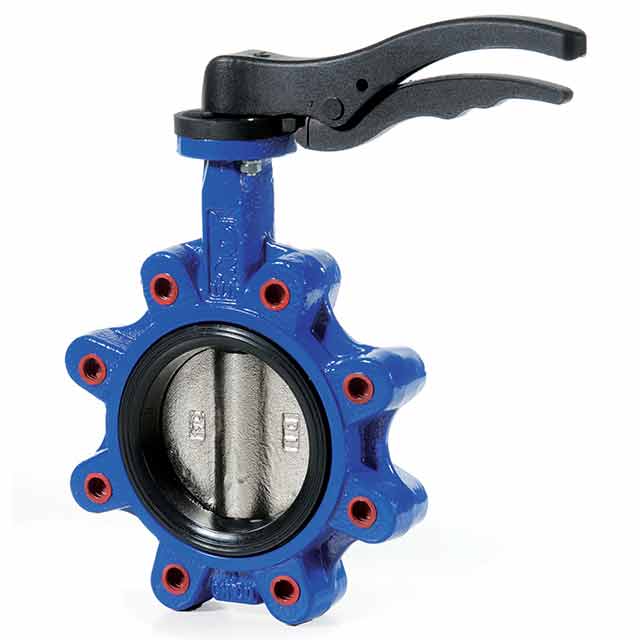

4" Brandoni Lugged & Tapped Butterfly Valve Stainless Steel Disc EPDM Liner. VS9912

This 4" Lugged & Tapped Butterfly Valve is perfect for industrial use. Outfitted with a stainless steel disc and EPDM liner, the valve is designed for long-term performance and durability.

• ISO 5211 for Direct Mount
• Epoxy Coated Ductile Iron Body
• 316 Stainless Steel Disc
• EPDM Liner
• Locking Lever Operation 1" to 12"
• Gearbox Operation 14" to 24"
• Complies with 97/23/CE (PED) Directive CE 1115. WRAS Approved from 2" to 12"

Rated PN16 1” to 12”, PN10 14” to 24”, Temperature -10°C to 120°C.

Note: Gearbox operation available for all sizes, please enquire. 1” to 6” to fit PN10/16 Flanges. 8” to 24” to fit PN16 Flanges. Other drillings available, please enquire.
