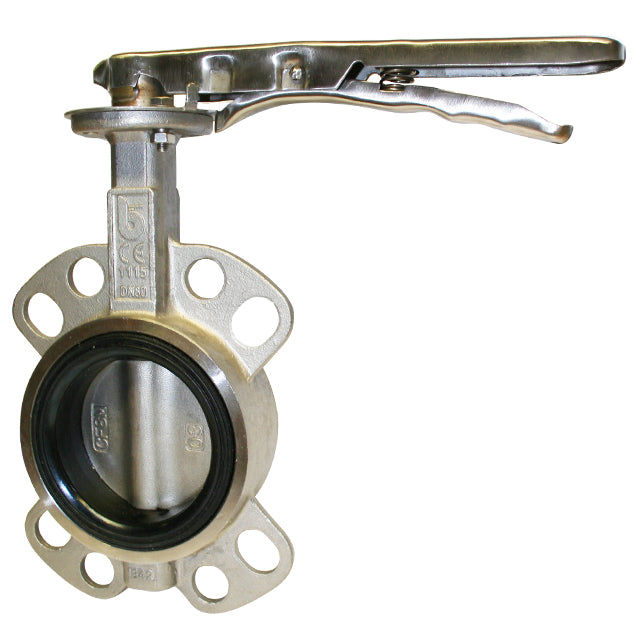

5" Brandoni Stainless Steel Wafer Butterfly Valve – Stainless Steel Disc – FKM (Viton) Liner VS9955

The 5" Brandoni Butterfly Valve is designed with a stainless steel disc and FKM (Viton) liner, making it an ideal choice for various industrial applications. Its stainless steel construction ensures superior performance and durability, and its FKM liner ensures resistance to a variety of chemicals.

• ISO 5211 for Direct Mount
• Stainless Steel Body & Disc
• FKM (Viton) Liner
• Stainless Steel Lever Operated
• Complies with 97/23/CE (PED) Directive CE 1115

Flange Suitability:
2″ PN6/10/16/ANSI 150/Table D & Table E
2½” PN6/10/16 & ANSI 150
3″ to 8″ PN6/10/16/ANSI 150/Table D & Table E

Rated PN16, Temperature -10°C to 140°C (150ºC).

Note: Gearbox Operation Available, Please Enquire.

Face to Face: 56mm
