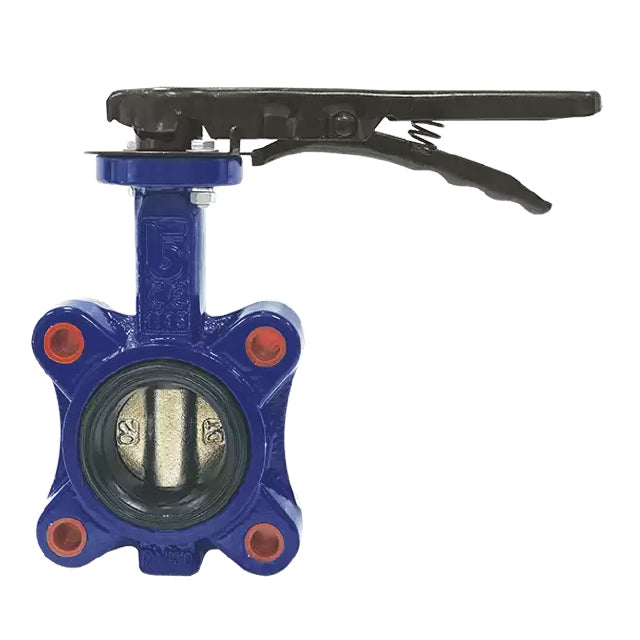

5" Lugged & Tapped Butterfly Valve – EPDM Liner – PN16. VS 9902

The 5" Lugged & Tapped Butterfly Valve is designed and constructed with an EPDM liner, flange compatible with PN16, and lugged ends for easy installation. This precise design ensures long-term, uniform performance for a wide range of applications.

• ISO 5211 for Direct Mount
• Epoxy Coated Cast Iron Body
• Nickel Plated Ductile Iron Disc
• EPDM Liner
• Locking Lever Operation up to 10”
• 12” Gearbox Operated
• Complies with 97/23/CE (PED) Directive CE 1115. To fit PN16 Flanges.

Rated PN16, Temperature -10°C to 120°C (130°C Peak.)

Note: Gearbox operation available for all sizes, please enquire.
