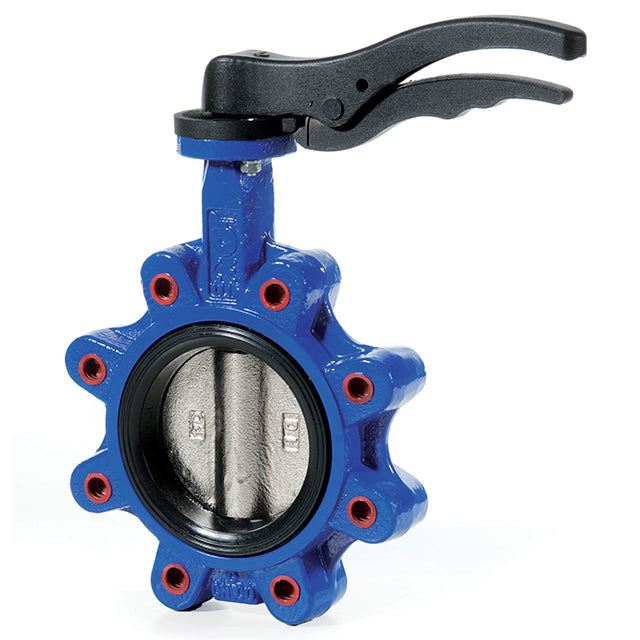

8" Brandoni Lugged & Tapped Butterfly Valve Stainless Steel Disc FKM (Viton) Liner. VS9938

This 8" butterfly valve is designed for maximum durability with its stainless steel disc and FKM (Viton) liner. It offers excellent performance and reliability with its lugged & tapped design.

• ISO 5211 for Direct Mount
• Epoxy Coated Ductile Iron Body
• Stainless Steel Disc
• FKM (Viton) Liner
• Locking Lever Operation 1 1/2" to 12"
• Gearbox Operation 14" to 24"
• Complies with 97/23/CE (PED) Directive CE 1115

Rated PN16 1½” to 12”, PN10 14” to 24”, Temperature -10°C to 140°C.

Note: Gearbox operation available for all sizes, please enquire. 1½” to 6” to fit PN10/16 Flanges. 8” to 24” to fit PN16 Flanges. Other drillings available, please enquire.
