ABAC DRY 25 16 CFM Compressed Air Dryer. 4102005870

Abac DRY 25 16 cfm Compressed Air Refrigerated Dryer - 4102005870

Todays compressed air production process is not only a matter of producing air, but also of confirming with defined purity criteria.

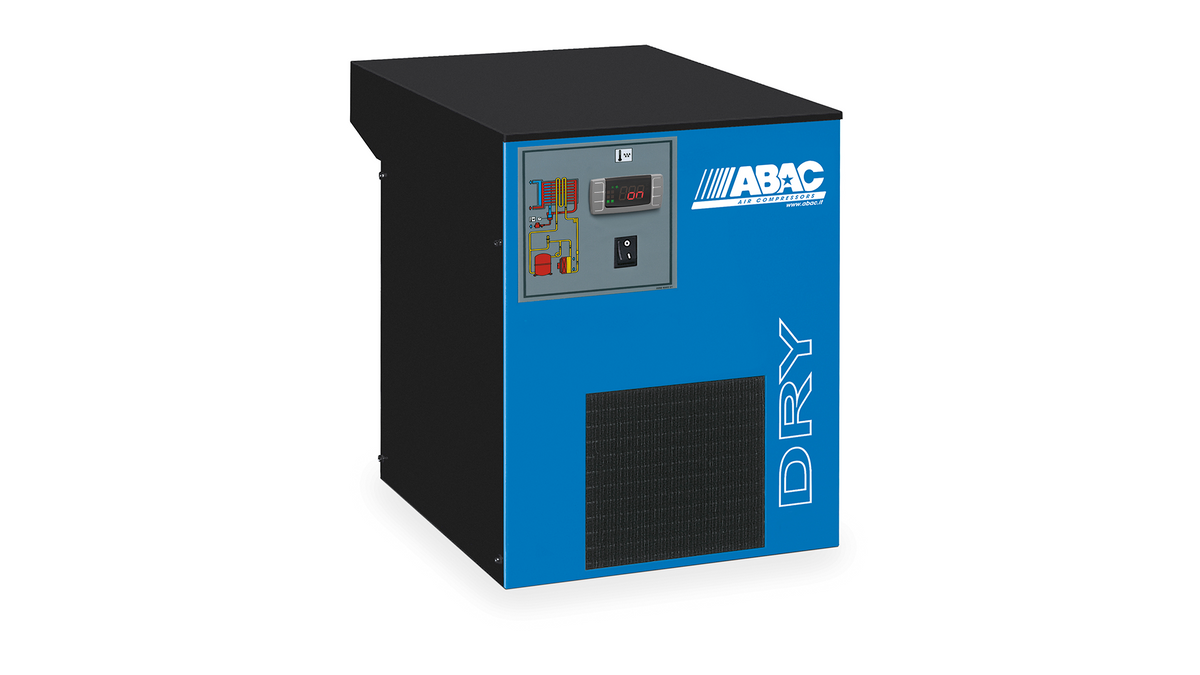

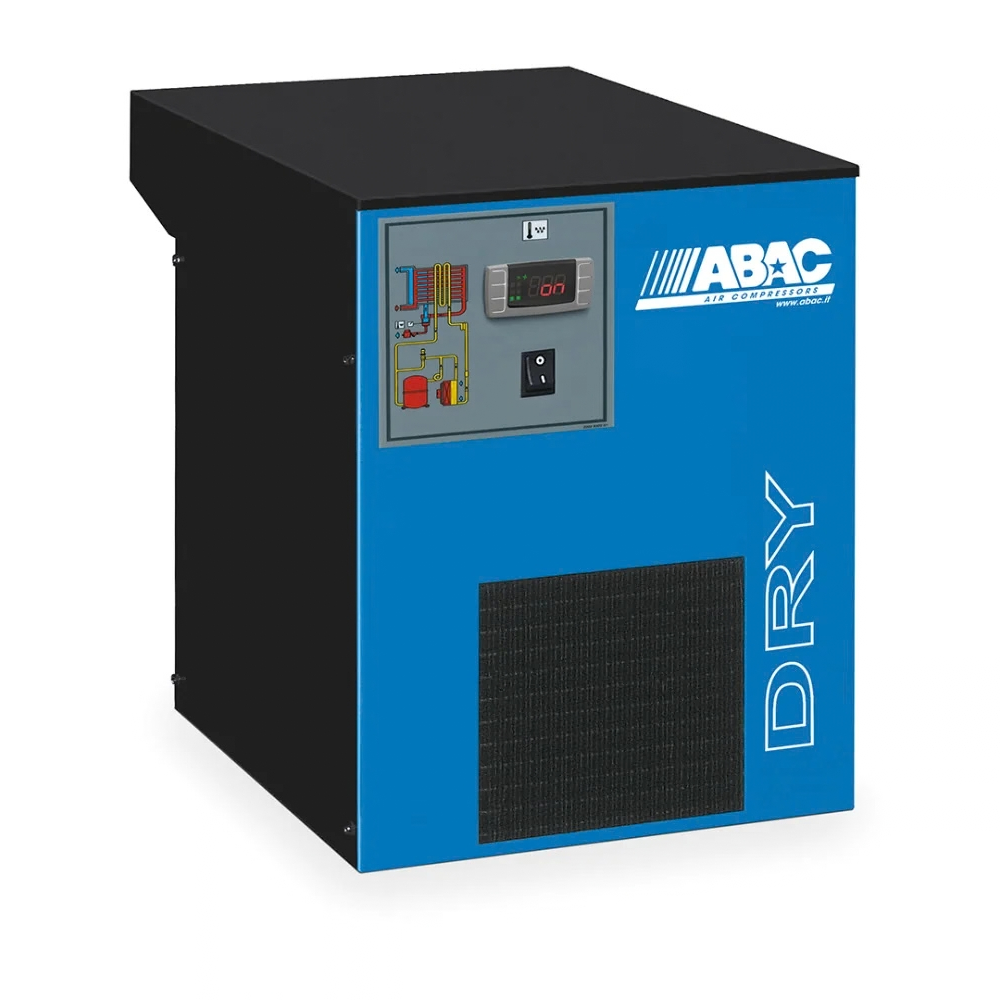

The ABAC DRY 25 is a compact refrigerated compressed air dryer for workshops and light industrial plant. Moisture in ambient air concentrates during compression; left untreated it becomes condensate that corrodes pipework, valves, tools and finished work. The DRY 25 cools the air, knocks that water out and discharges it through the drain so downstream air stays drier and more reliable.

It sits on ABAC’s E0 platform: 230 V single phase, 16 bar maximum working pressure, and a rated flow of 350 l/min at +3°C pressure dew point (reference conditions 7 bar, 35°C inlet, 25°C ambient). That is the figure to size against. Some listings quote around 16–17 CFM at a warmer +5°C dew point — do not undersize against that higher number.

Suitable for piston and small screw compressors feeding spray plant, pneumatic tools, garage equipment and general workshop air. Fit line filters before and after the dryer for best air quality. Optional filter support / bypass kits are available for DRY 20–130 models; line filters are ordered separately.

Call 0800 7555 077 or email info@thevalveshop.co.uk if you need help matching the dryer to compressor FAD.

Technical data

• Model: DRY 25 (E0)
• Part number: 4102005870
• Type: Refrigerated compressed air dryer
• Flow @ +3°C PDP: 350 l/min (approx. 12.4 CFM)
• Flow @ +5°C PDP (nominal / market rating): approx. 16–17 CFM
• Max working pressure: 16 bar
• Power supply: 230 V / 50 Hz / 1 ph
• Power consumption: 130 W
• Connections: ½" or ¾" BSP male
• Dimensions (L × W × H): 350 × 500 × 450 mm
• Weight: 19 kg
• Ambient limits: typically +5°C to +45°C
• Max inlet temperature: 55°C
• Reference conditions: 7 bar, 35°C inlet, 25°C ambient
