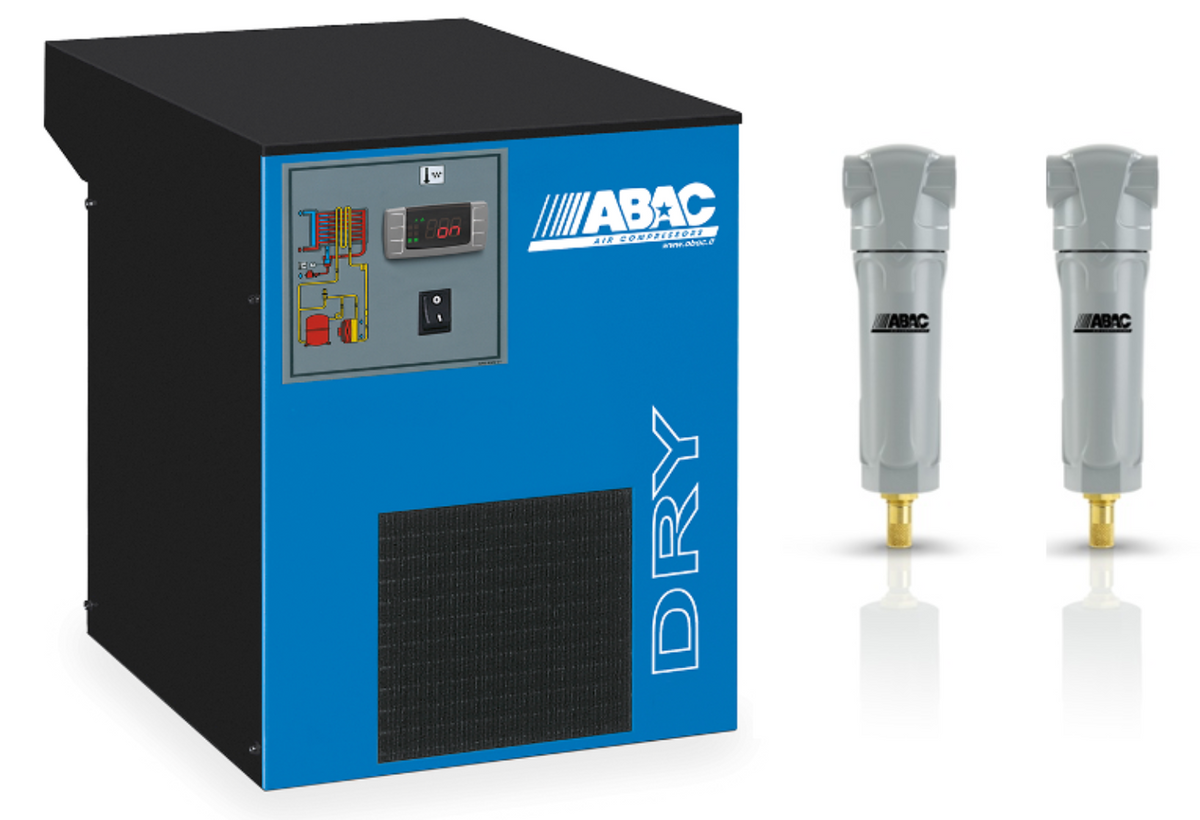

ABAC DRY 25 16 CFM Compressed Air Dryer & Filters. 4102005870 + 2 × Filters

ABAC DRY 25 refrigerated dryer supplied with two line filters so the air is dried and cleaned in one package. Compression concentrates moisture, oil aerosol and particles. The dryer knocks out condensate; the filters take solids and oil before and after the dryer so pipework, valves, spray plant and tools last longer.

This offer includes

• 1 × ABAC DRY 25 (E0) refrigerated dryer — part 4102005870
• 1 × ABAC G series general-purpose pre-filter (coalescing / particulate)
• 1 × ABAC C series high-efficiency oil-removal filter

Typical install: G filter → dryer → C filter. The G filter protects the dryer; the C filter polishes oil aerosol after cooling. Buying the dryer with both filters is the usual workshop package and is commonly supplied with an extended 2-year dryer warranty versus 12 months on the dryer alone — confirm current ABAC UK warranty on the order.

Size the dryer to compressor FAD at +3°C pressure dew point (350 l/min / about 12.4 CFM). The “16 CFM” name is a market rating near +5°C PDP — do not undersize against that higher figure.

Call 0800 7555 077 or email info@thevalveshop.co.uk to match the pack to your compressor.

Technical data — dryer

• Model: DRY 25 (E0)
• Part number: 4102005870
• Flow @ +3°C PDP: 350 l/min (approx. 12.4 CFM)
• Market rating @ +5°C PDP: approx. 16–17 CFM
• Max working pressure: 16 bar
• Supply: 230 V / 50 Hz / 1 ph
• Power: 130 W
• Connections: ½" or ¾" BSP male
• Size: 350 × 500 × 450 mm
• Weight: 19 kg

Technical data — filters

• G series: general-purpose coalescing pre-filter, typically ~1 µm / ISO 8573 oil class around 3
• C series: high-efficiency coalescing, typically 0.01 µm oil aerosol / ISO 8573 oil class around 1
• Connection size matched to the DRY 25 (commonly ½")
• 16 bar class line filters

Elements are service parts; change them on the ABAC interval or when differential pressure rises.
