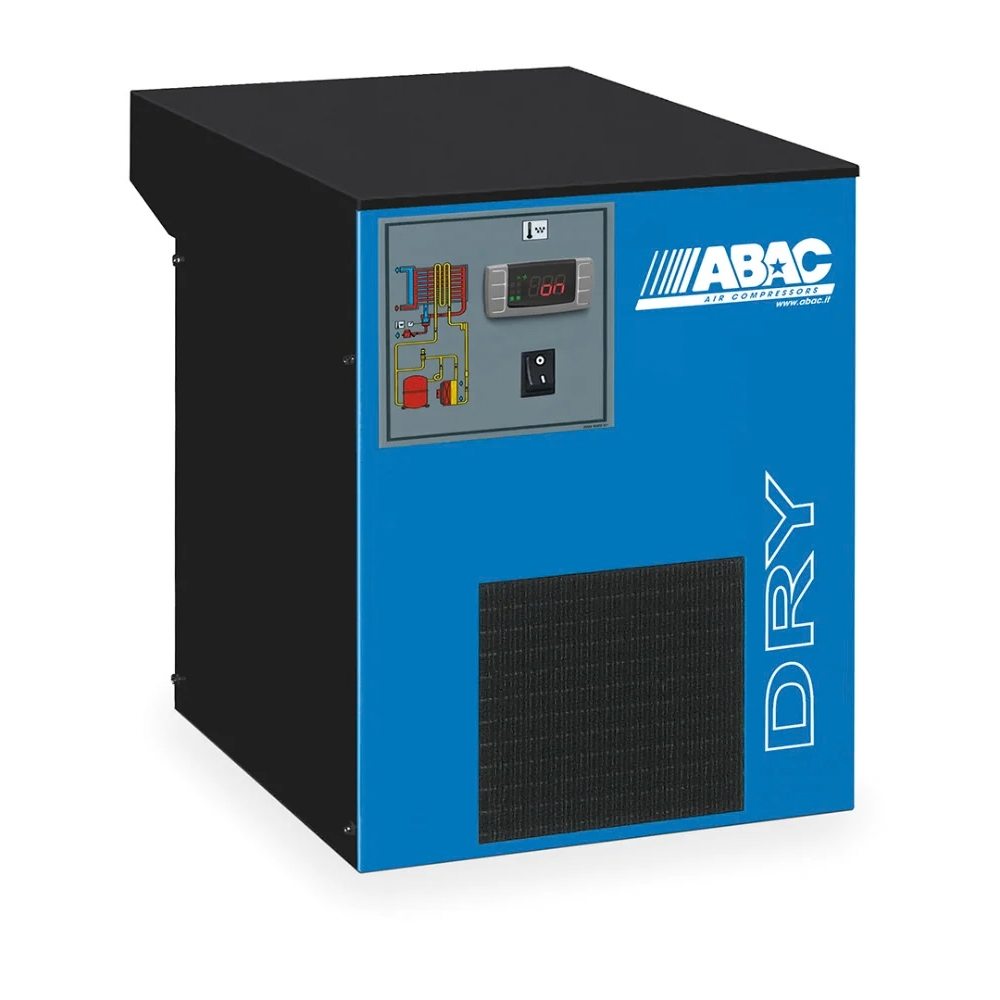

ABAC DRY 45 27 CFM Compressed Air Dryer. 4102005871

The ABAC DRY 45 is a compact refrigerated compressed air dryer for workshops and light industrial plant that need more flow than the DRY 25. Moisture in ambient air concentrates during compression; left untreated it becomes condensate that corrodes pipework, valves, tools and finished work. The DRY 45 cools the air, knocks that water out and discharges it through the drain so downstream air stays drier and more reliable.

It sits on ABAC’s E1 platform: 230 V single phase, 16 bar maximum working pressure, and a rated flow of 600 l/min at +3°C pressure dew point (reference conditions 7 bar, 35°C inlet, 25°C ambient). That is the figure to size against. The “27 CFM” name is a market rating near +5°C dew point (about 750 l/min / 26.5 CFM) — do not undersize against that higher number.

Suitable for larger piston and small screw compressors feeding spray plant, pneumatic tools, garage equipment and general workshop air. Fit line filters before and after the dryer. Optional filter support / bypass kits are available for DRY 20–130; filters are ordered separately, or as a dryer-and-filters pack.

Call 0800 7555 077 or email info@thevalveshop.co.uk if you need help matching the dryer to compressor FAD.

Technical data

• Model: DRY 45 (E1)
• Part number: 4102005871
• Type: Refrigerated compressed air dryer
• Flow @ +3°C PDP: 600 l/min (approx. 21.2 CFM)
• Flow @ +5°C PDP (nominal / market rating): approx. 27 CFM
• Max working pressure: 16 bar
• Power supply: 230 V / 50 Hz / 1 ph
• Power consumption: 164 W
• Connections: ½" or ¾" BSP male
• Dimensions (L × W × H): 350 × 500 × 450 mm
• Weight: 19 kg
• Ambient limits: typically +5°C to +45°C
• Max inlet temperature: 55°C
• Reference conditions: 7 bar, 35°C inlet, 25°C ambient
