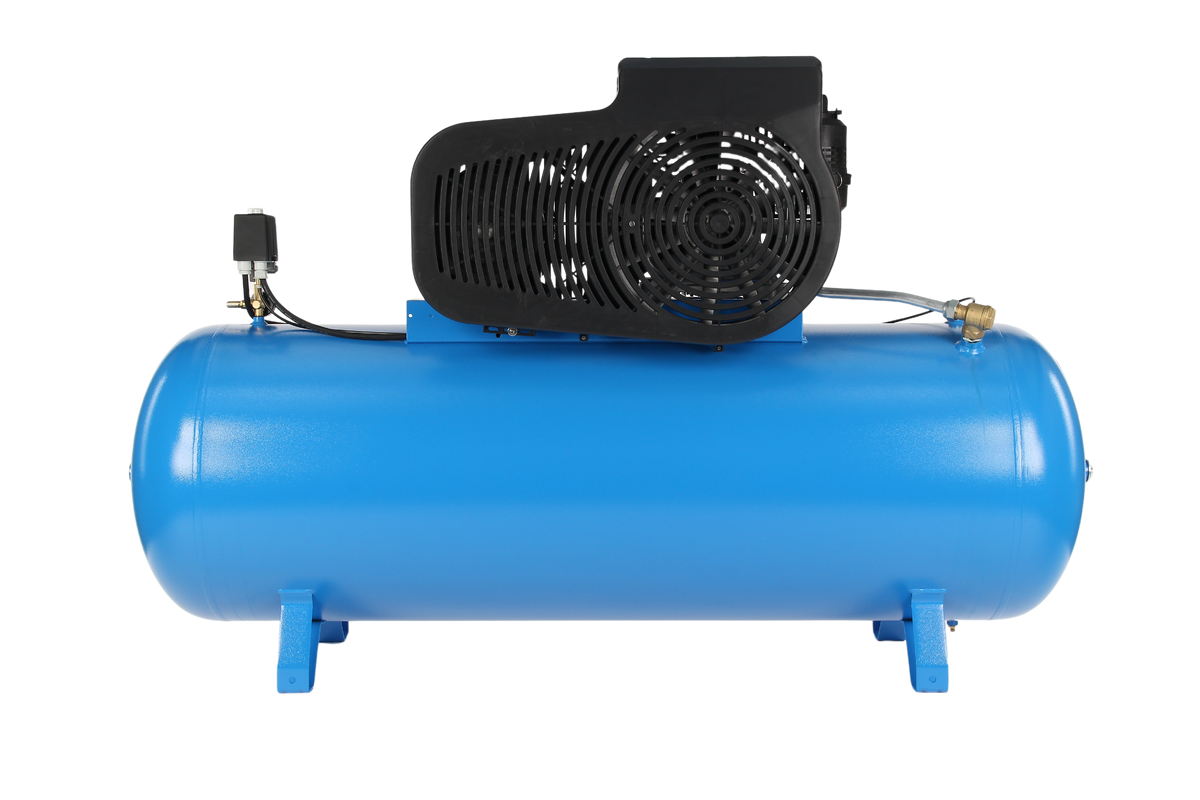

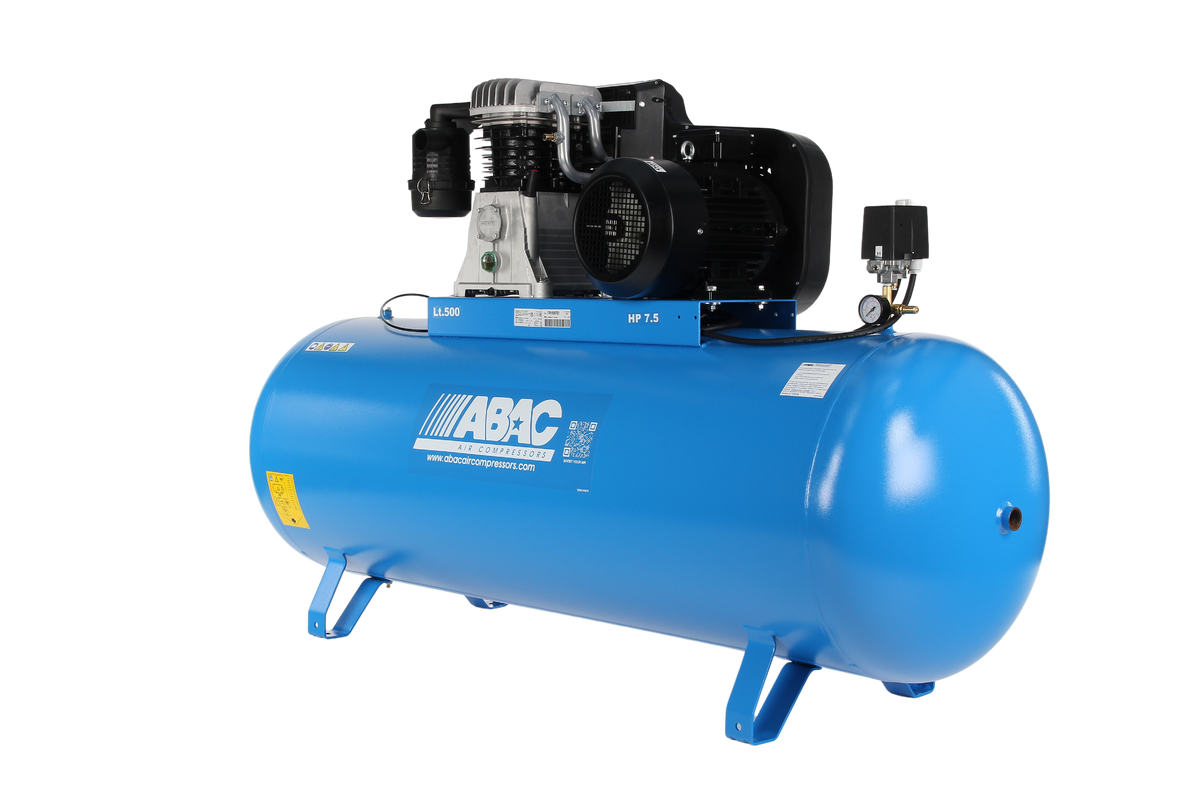

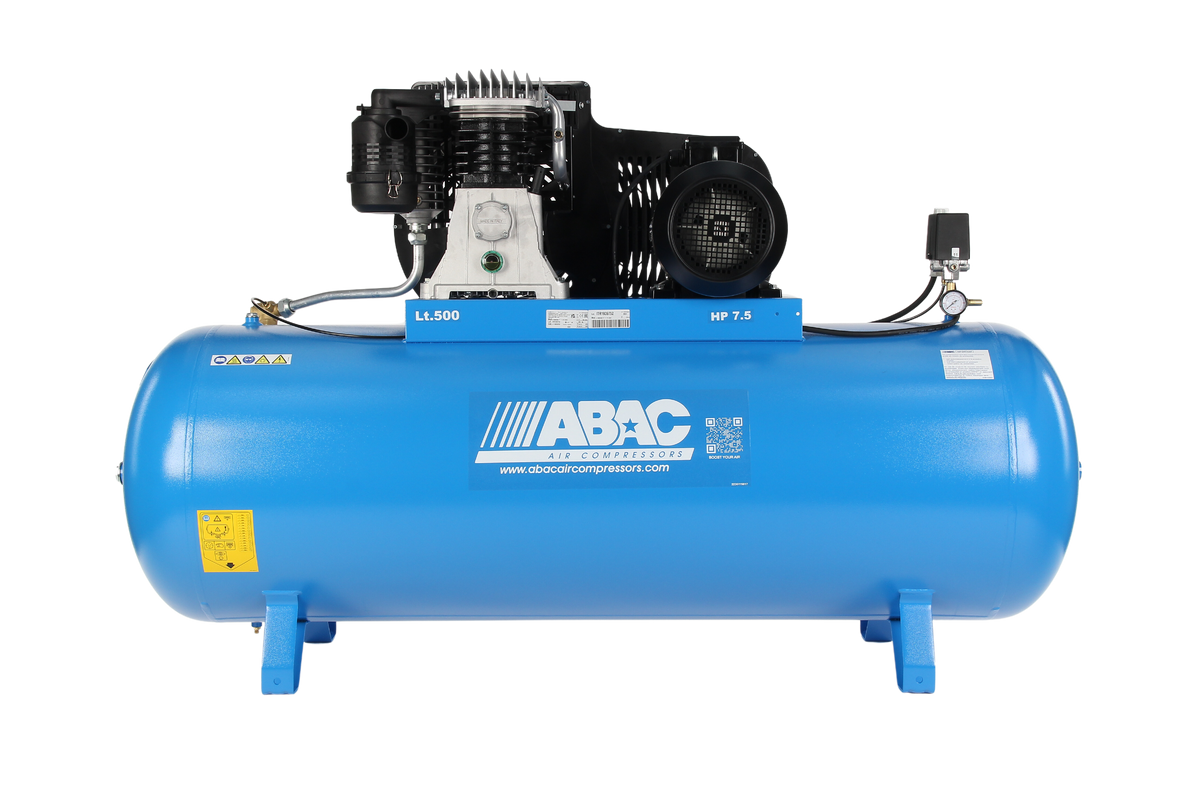

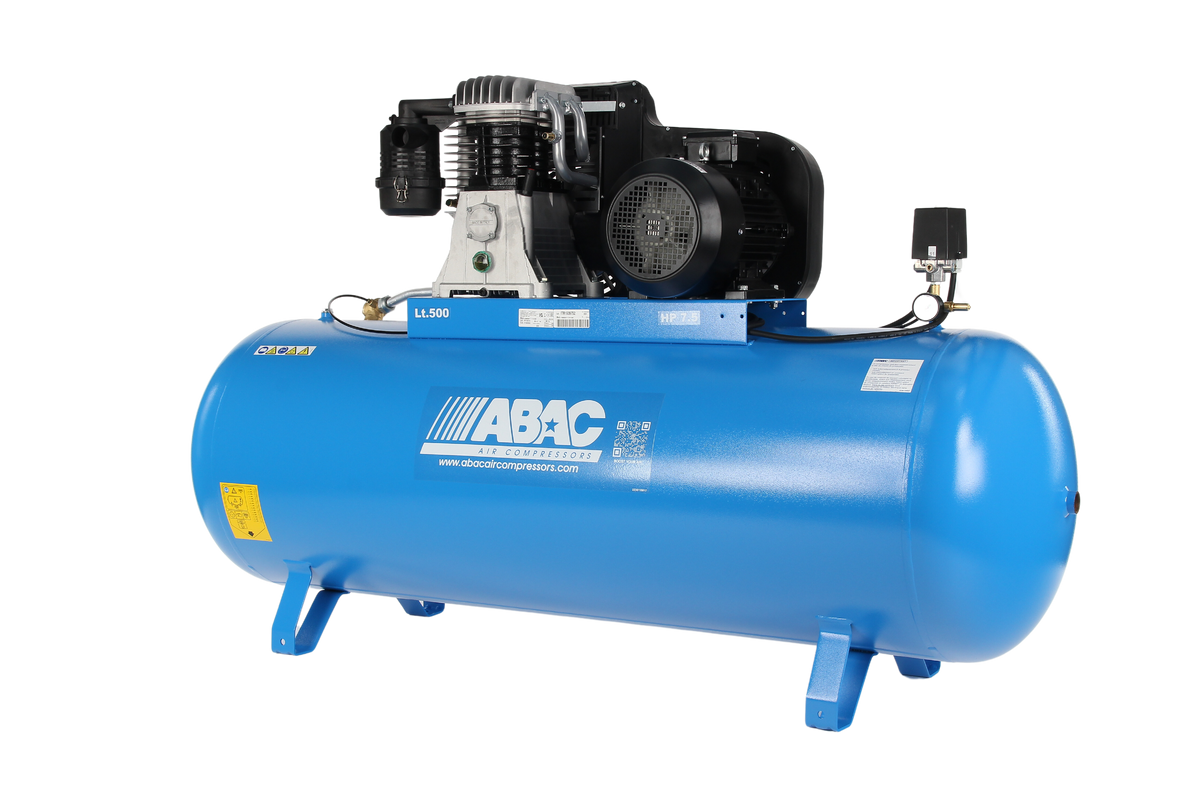

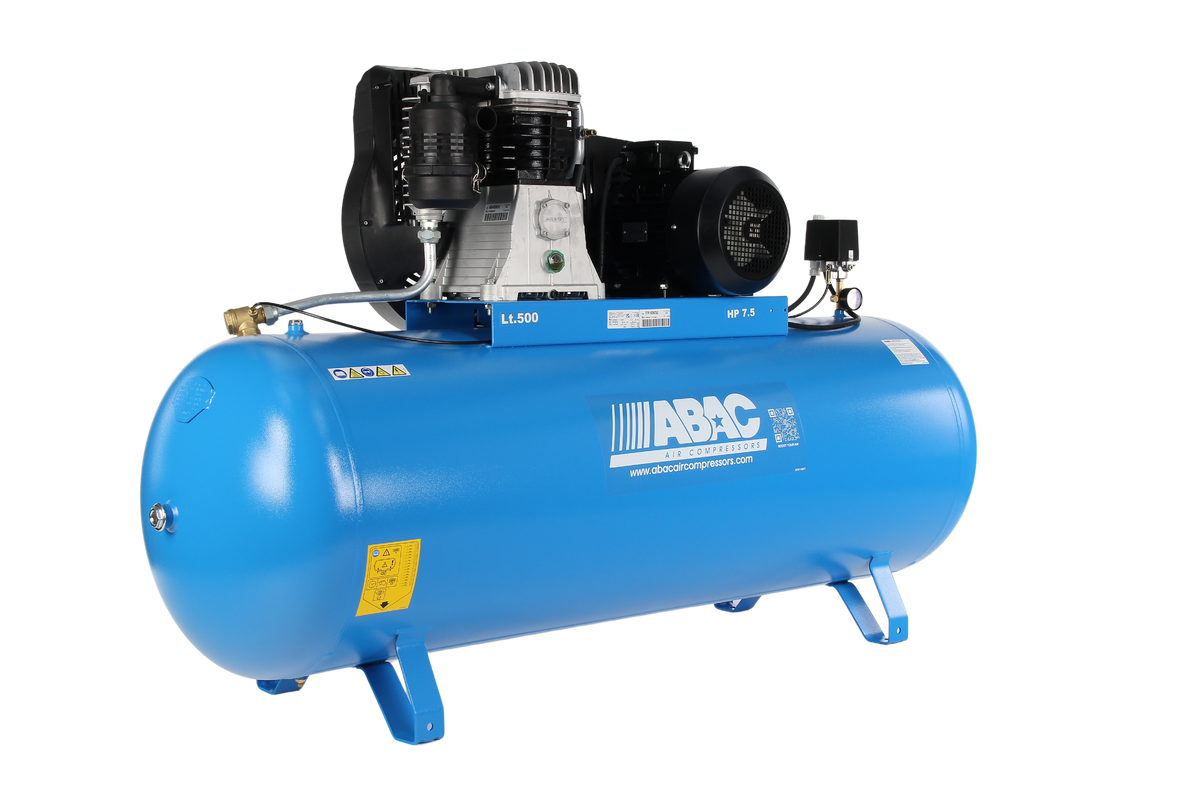

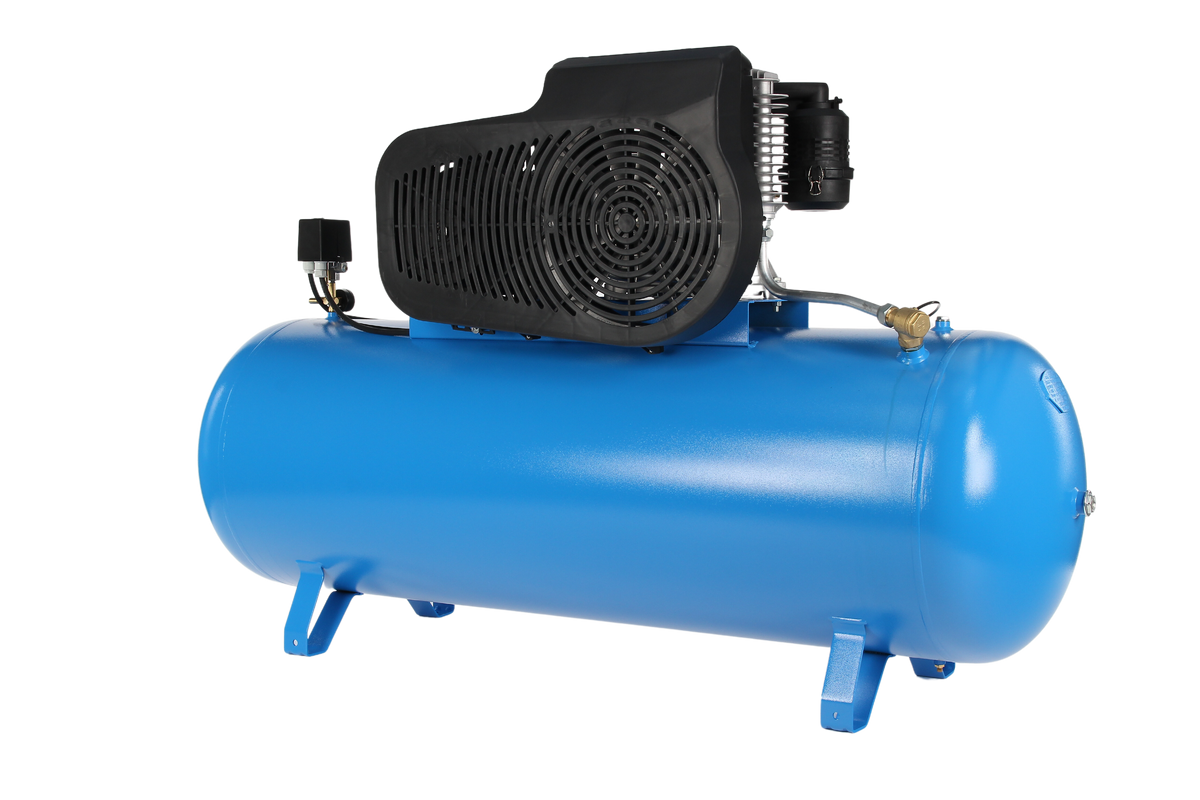

Abac PRO B6000 500 FT7.5 YD - 3 Phase 5.5kw 500L 20CFM 15Bar Air Compressor - 4116020249
Abac PRO B6000 500 FT7.5 YD - 3 Phase 5.5kw 500L 20CFM 15Bar Air Compressor - 4116020249
Regular price
£2,677.05 Inc Vat
Regular price
Sale price
£2,677.05 Inc Vat
Unit price
per
Available To Order!
Couldn't load pickup availability
Our PRO 15 Bar range is ideal for those users requiring higher working pressures than our standard 11 Bar units. The air receiver is designed for higher working pressures with increased thickness.
Upgrade your air compressor with the powerful Abac PRO B6000 500 FT7.5 YD. With 3-phase 5.5kw motor, 500L tank, 20CFM airflow, and 15Bar pressure, this compressor delivers optimal performance for your industrial needs. Trust in Abac's expertise for reliable and efficient air compression.
| Specification | Value |
|---|---|
| EAN Code | 8024900521665 |
| Max Pressure (bar) | 15 Bar |
| Max Pressure (psi) | 218 PSI |
| Pump Speed | 1400 Rpm |
| Vessel size (lt) | 500 Liter |
| Vessel Size (gal) | 132 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 827 l/min |
| Air Displacement (cfm) | 29.2 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 2.3 Liter |
| Pump Element | B6000 |
| Motor (hp) | 7.5 Hp |
| Motor (kw) | 5.6 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 82 dB(A) |
| Noise Level (LWA) | 102 dB(A) |
| Fuel type | n.a. |
| Product Length | 2030 mm |
| Product Height | 1400 mm |
| Product Width | 670 mm |
| Weight (Kg) | 290 Kg |
