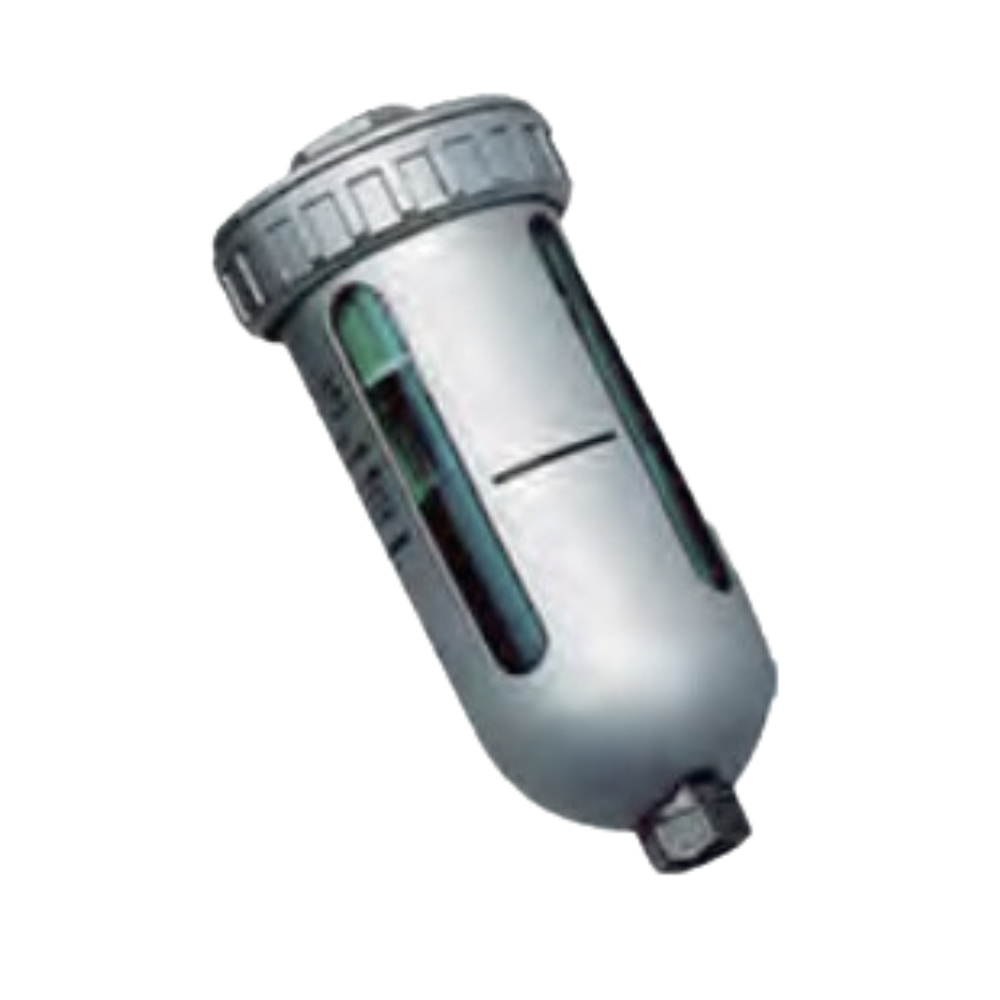

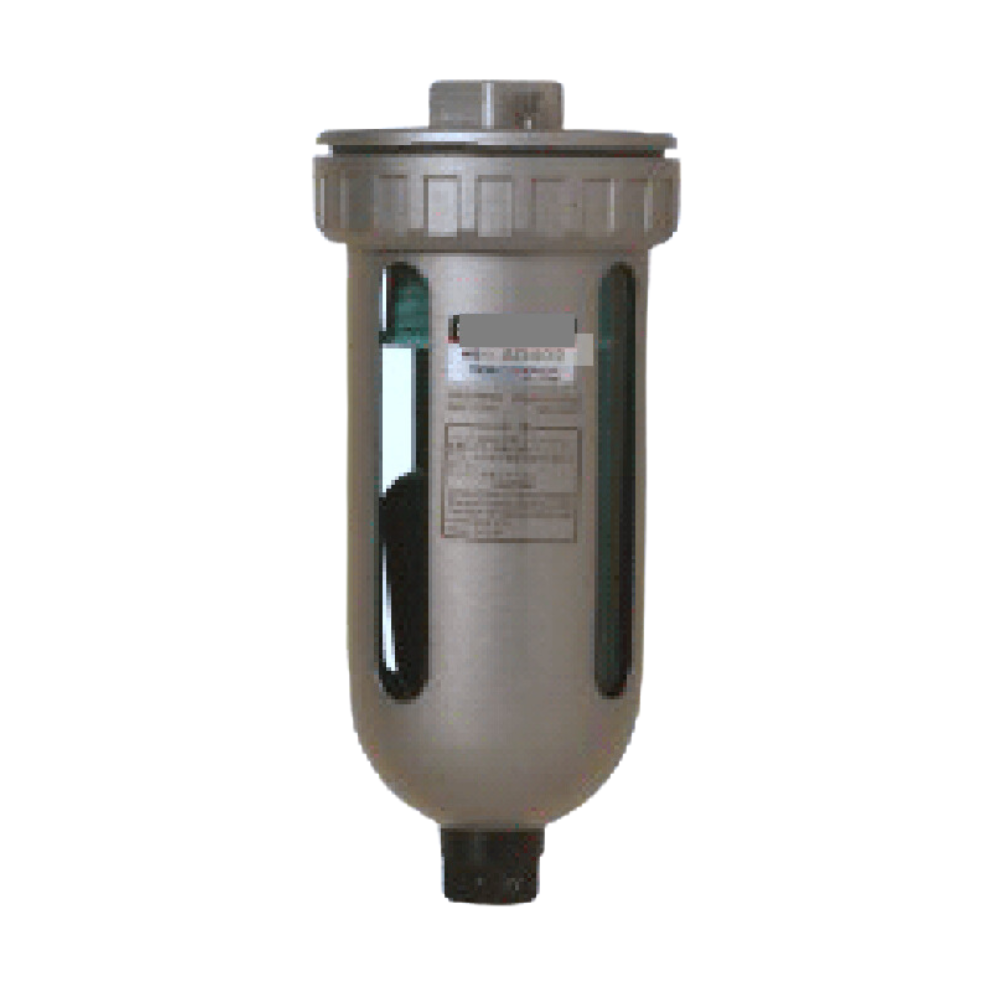

Economy Float Controlled Auto Drain. 1/2" Mechanical Float CS402

CS 402 is especially suited to large sites where the provision of a power supply may be prohibitive in terms of cost, or where the application of power may constitute a hazard.

The simple but rugged mechanism uses the principle of flotation to register the presence of condensate, and to physically open the discharge valve by displacement of the internal float.

Technical data:

• Material Aluminium alloy body
• Polycarbonate bowl
• Temperature range 5°C-60°C
• Pressure range 0-10bar
• Capacity: 400 cfm
• Connection R 1/2”
• Discharge port R 3/8”
• Oil resistant ‘O’ ring
• Height 184mm
• Diameter 82mm (max)
