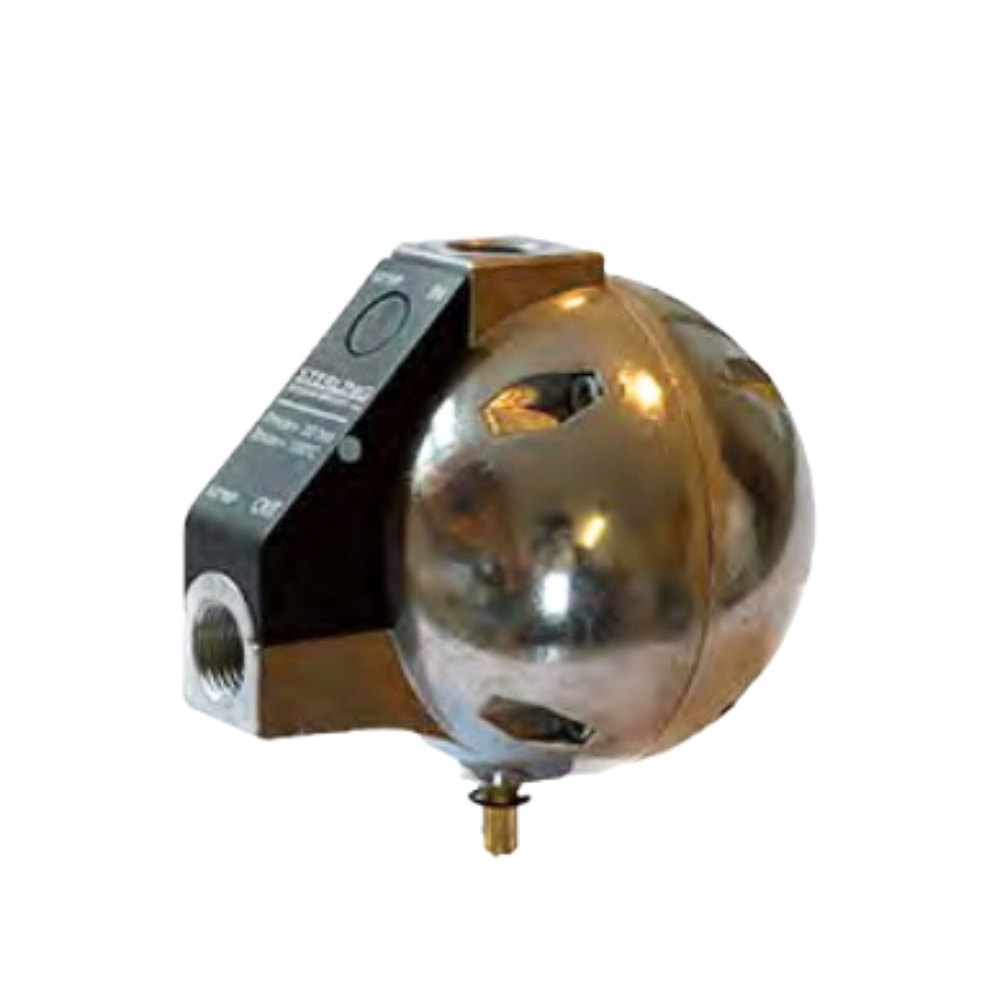

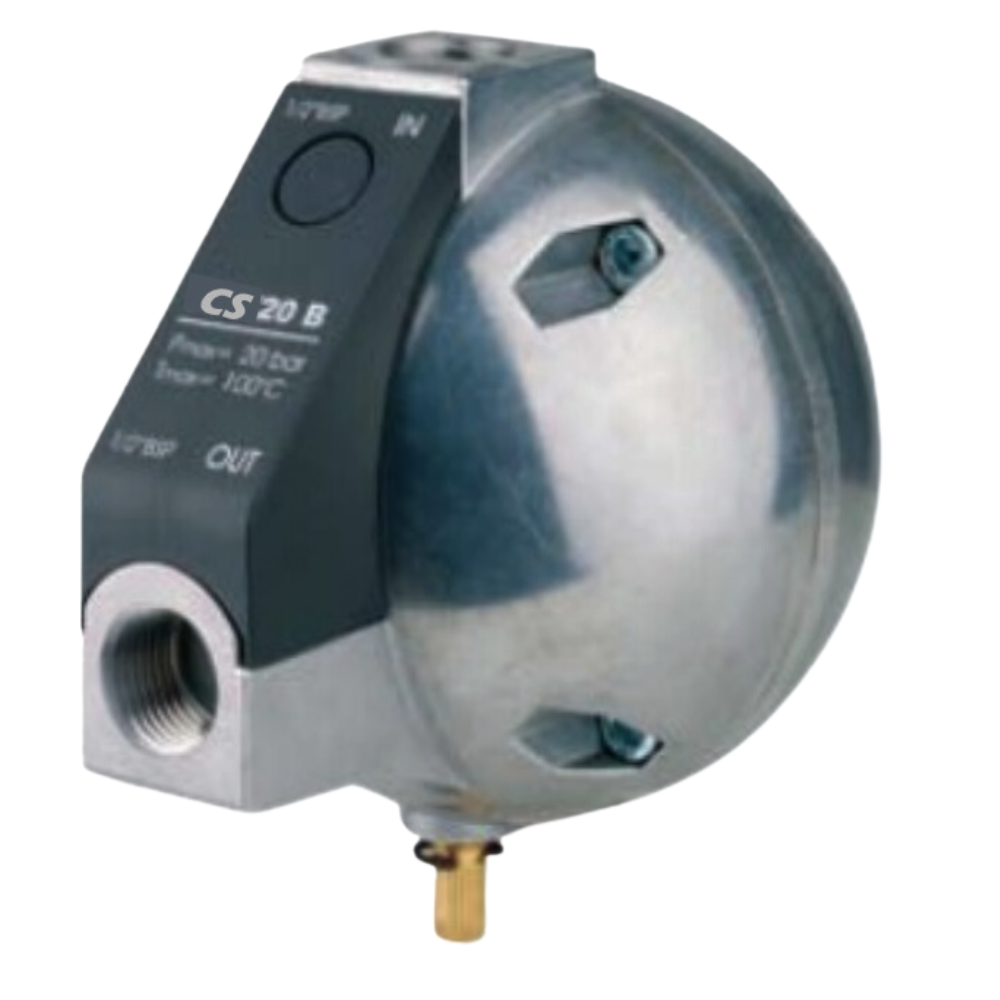

Economy Float Controlled Auto Drain. 1/2" Mechanical Heavy Duty CS20B

CS 20B is especially suited to large sites where the provision of a power supply may be prohibitive in terms of cost, or where the application of power may constitute a hazard.

The simple but rugged mechanism uses the principle of flotation to register the presence of condensate, and to physically open the discharge valve by displacement of the float. The option to use a balancing air connection to aid operation for heavy condensate flows is provided.

• Technical data:
• Material: Aluminium alloy
• Temperature range: 1.5C — 65C
• Pressure: 0-16bar
• Capacity: 4000 cfm

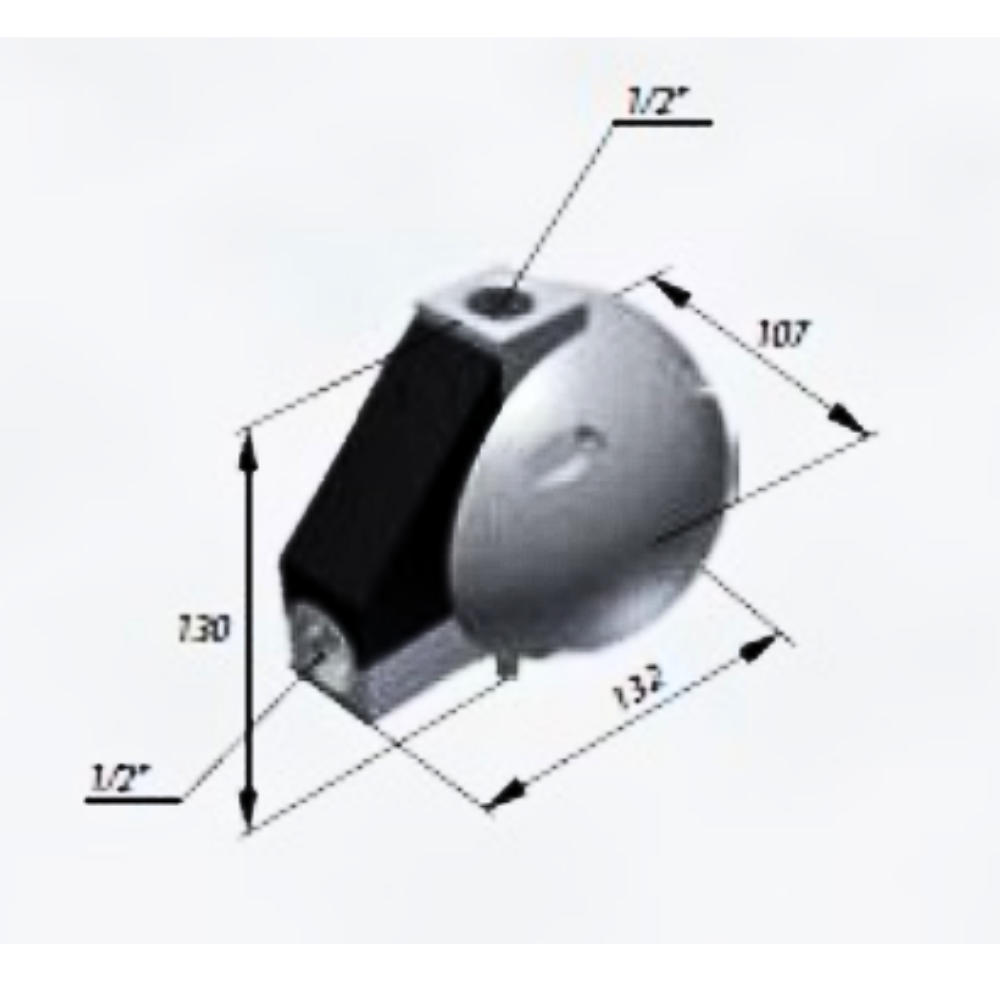

• Connection R 1/2” (inlet & outlet)
• Oil resistant ‘O’ ring
